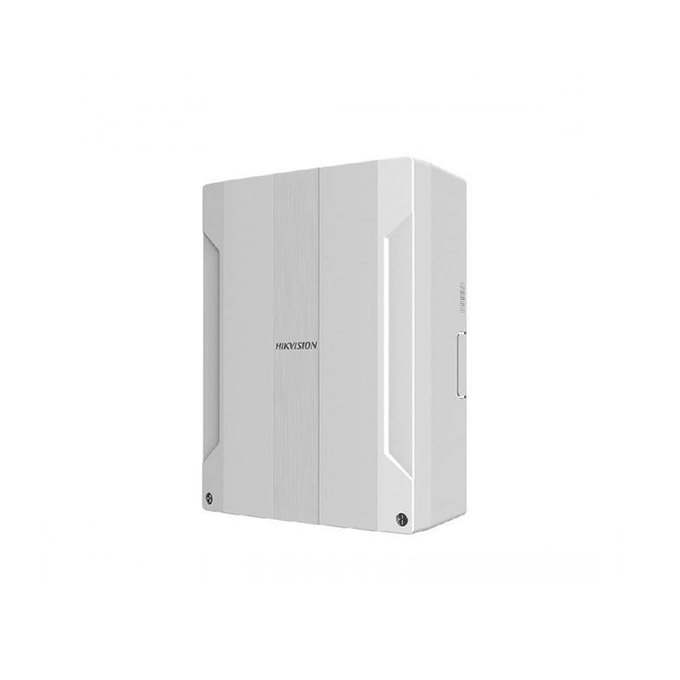

DS-PWA96-M2H-WE ΠΙΝΑΚΑΣ AX PRO ULTRA με ασύρματες και ενσύρματες ζώνες

DS-PWA96-M2H-WE ΠΙΝΑΚΑΣ AX PRO ULTRA με ασύρματες και ενσύρματες ζώνες

• ΈΩΣ 96 ΖΩΝΕΣ + 16 ΕΝΣΥΡΜΑΤΕΣ
• ΔΙΚΤΥΑ TCP/IP, WI-FI, ΚΑΙ GPRS/3G/4G
• ΑΣΥΡΜΑΤΟ ΠΡΩΤΟΚΟΛΛΟ ΝΕΑΣ ΓΕΝΙΑΣ  TRI-X / CAM-X
• ΜΕΓΑΛΗ ΑΠΟΣΤΑΣΗ ΜΕΤΑΔΟΣΗΣ RF
• ΔΙΑΜΟΡΦΩΣΗ ΜΕΣΩ WEB CLIENT, MOBILE CLIENT ΚΑΙ CONVERGENCE CLOUD •
• ΕΙΔΟΠΟΙΗΣΕΙΣ ΣΥΝΑΓΕΡΜΟΥ (PUSH NOTIFICATIONS) ΜΕΣΩ SMS ΚΑΙ ΤΗΛΕΦΩΝΙΚΩΝ ΚΛΗΣΕΩΝ
• ΠΡΟΒΟΛΗ ΖΩΝΤΑΝΩΝ ΒΙΝΤΕΟ ΑΠΟ ΤΟ HIK CONNECT
• VIDEO CLIPS ΣΥΝΑΓΕΡΜΟΥ ΜΕΣΩ EMAILS ΚΑΙ ΕΦΑΡΜΟΓΗΣ (APP)
• ΑΝΕΒΑΖΕΙ ΑΝΑΦΟΡΕΣ ΣΥΝΑΓΕΡΜΟΥ ΣΤΟ ARC

Key features:

• TCP/IP, Wi-Fi, and GPRS/3G/4G network
• New generation wireless protocol: Tri-X/Cam-X
• Long RF transmission distance
• Two-way communication with AES-128 encryption
• Connects up to 96 wireless zones/outputs (including 48 PIRCAMs), 16 wired zones, 2 wired outputs, 48 wireless keyfobs, 4 repeaters, 6 sounders, 8 tag readers & keypads.
• The capability varies according to the model of device.
• Supports up to 48 network users, including 1 installer, 1 administrator, and 46 normal users
• Voice prompt
• Configuration via Web client, mobile client, and Convergence Cloud
• Hik-Connect and Hik-ProConnect configuration depends on the user access level
• Pushes alarm notification via messages or phone calls
• Views live videos from Hik-Connect
• Alarm video clips via emails and APP
• Uploads alarm reports to ARC
• Supports LED indicator to indicates system status
• 4520 mAh lithium backup battery or 12v 7Ah storage battery depends on model of device
• SIA-DC09 protocol, and supports both Contact ID and SIA data format
• Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication

Frequency: 868Mhz

• Wireless type: 2-way wireless
• Wireless Security: Frequency Hoping 128 AES Encryption
• Wireless Zones: Up to 96 (Including PIRCAM & Wired Zones/Outputs)
• Wired Zones: 16
• Wired outputs: 2
• Power outputs: 2 (12v, total 1A)

Basic

• Wireless Tag Readers & Keypads: Up to 8
• Wireless Sounders: 6 (3 Internal+3 External)
• Wireless keyfobs: 48
• Wireless repeaters: 4
• Tags: 48
• PIRCAM: 48
• Onboard IP CAMERA Integration: 4*7s clips have their own storage, not overrides each other

User

• Installer: 1
• Admin: 1
• Users: 46
• Areas: 32
• Voice prompt: Supported
• Loudspeaker built in: Supported
• Tag reader build-in: N/A
• LEDs Status: Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power
• Memory Log stored: 5000

Key Software features

• RS-232 outpu: Supported
• Programming tools: Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
• Firmware upgrade: APP Manual or Web
• Arm Modes: Away / Stay
• Automatic Arm/Disarm Timers: Supported
• Forced Arming with Open Zones: Supported
• Diagnostics of via the APP or Web: Supported
• LAN port: Supported
• Wi-Fi on board: Supported (2.4G)
• GPRS on board: N/A
• 3/4G on board: Supported
• SIM slot: Dual (Micro SIM)
• SMS notification: Supported
• Alarm voice call: Supported

Communication:

• ARC protocol: Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685) Supports video verification and remote control
• User APP for operating: Supported
• Installer APP for programming: Supported
• Web server for maintenance (offline configuration): Supported

Hardware

• Battery Stand by: Up to 36 hours
• Power Supply: Built in power supply
• Battery pack: 12v 7Ah Storage battery (Battery is not included by default)
• Housing: Plastic

Automation

• Schedules: Wall switch & Relay & Plug (Has time schedule)

Approvals

• EN: EN50131 Grade 2
• CE: Supported
• Rohs/Reach/WEEE: Supported

Others

• Operation temperature: -10°C to 40°C
• Dimension: 261x199x86.4mm / 1083gr (No Battery)

Τεχνικά χαρακτηριστικά pdf
