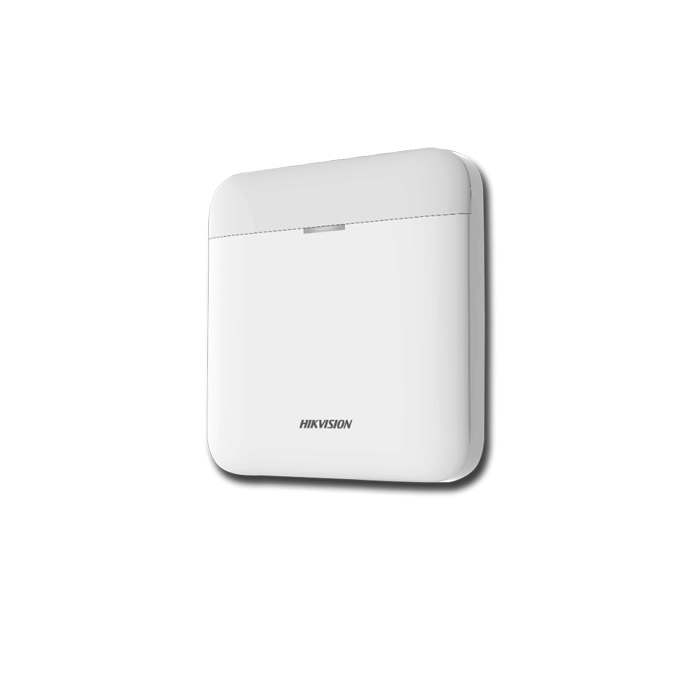

DS-PR1-WE ΑΝΑΜΕΤΑΔΟΤΗΣ ΣΗΜΑΤΟΣ

• 868MHz two-way wireless communication
• Two-way communication, stable and secure
• LED display, show the differernt feedbacks with easy understanding
• Up to 35 hrs battery backup after mains lost, no worry about communication
• Finding and connecting up to 8 PIRCAM or smoke detectors automatically, smart auto-pairing
• Easy installation with new designed structure

Hardware Features

• Serial Port: 2, for debug
• Tamper-Proof: 1, Front and Back
• Power Switch: 1
• Wireless Transmission

Electrical characteristics

• Battery Type: Built in Battery Li
• Power Supply: 100VAC ~ 240VAC
• Operation Humidity: 10% ~ 90%
• Operation Temperature: -10°C ~ +55°C
• Battery Life Span: Up to 35 hours
• General

Wireless Transmission

• RF Frequency: 868MHz
• RF Method: Two way communication
• RF Modulation: 2GFSK
• RF Distance: 1600m (Open area)
• Wireless Security: AES-128

Display

• LEDs Status: 3, Register/Signal (Green/Red), Power (Green), Fault (Amber)

General

• Installation Method: Wall Mounting
• Dimension (WxHxD): 150 x 150 x 25mm / 372gr
• Shell Material: Plastic
• Color: White

Device Management

• PIRCAM Paring: Supported
