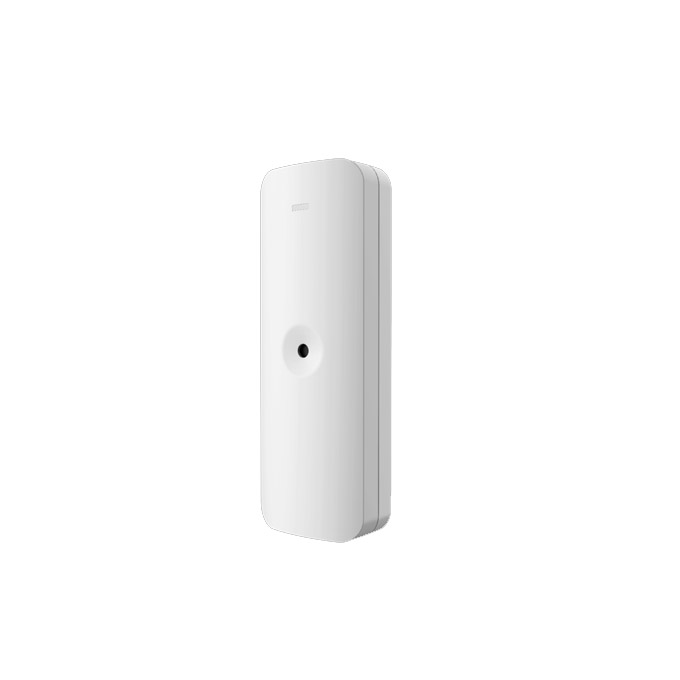

DS-PDBG8-EG2-WE ΑΝΙΧΝΕΥΤΗΣ ΘΡΑΥΣΗΣ ΚΡΥΣΤΑΛΛΟΥ

• Detection Method: Acoustic Sensor
• Detection Range: 8m
• Detection Angle: 120°
• Sensitivity: 2m, 4m, 6m, 8m
• Glass Type: Float, Plate, Tampered, Wired, Laminated Leaded, Double Glazing
• Glass Thickness: 2.4mm to 6.4mm
• Glass Size: 0.3m x 0.3m to 3m x 3m

Feature

• Digital Processing: Support
• Tamper Protection: Front, Rear
• Environment Temperature Indicator: Support
• Signal Strength Indicator: Support

Interface

• Alarm Input: Normally Closed, Normally Open, Impulse Count
• Power Switch: Power Up Enrolling
• LED Indicator: Blue (Alarm)

Transmission

• Transmission Technology: Tri-X Wireless
• Transmission Method: Two-Way RF Wireless
• Transmission Frequency: 868MHz
• Transmission Security: AES-128 Encryption
• Transmission Range (Free Space): 1.6Km
• Frequency Hopping: Support
• Enrolling Method: Power up, Remote ID, QR Code

Electrical Characteristics

• Power Supply: Battery Powered
• Battery Type: CR123A x 2
• Typical Voltage: 3V
• Standard Battery Life: 5 years in work status (being triggered 20 times per day)

General

• Operation Temperature: -10°C to 55°C
• Storage Temperature: -20°C to 60°C
• Operation Humidity: 10% to 90%
• Dimension (WxHxD): 38.8mm x 107.0mm x 24.5mm / 83g
• Mounting Method: Wall, Ceiling
• Application Scenario: Indoor
