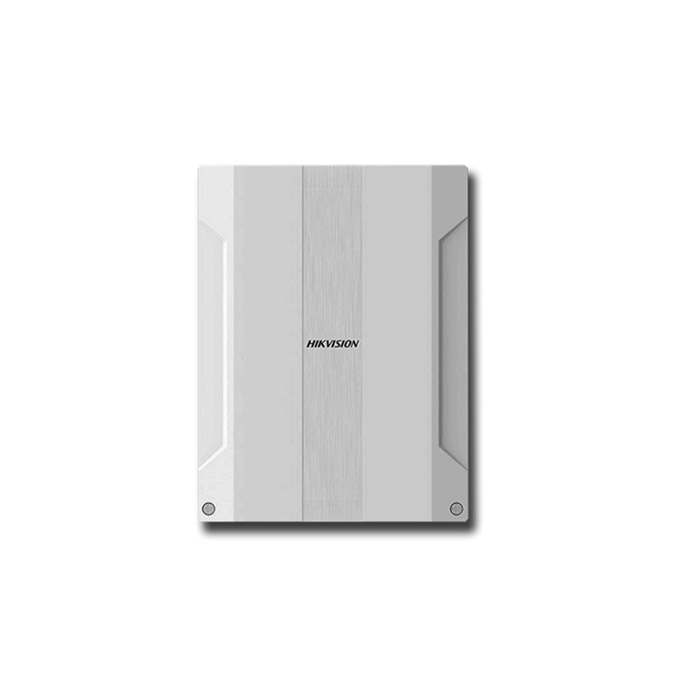

DS-PM1-I16O2-WE ΑΣΥΡΜΑΤΗ ΕΠΕΚΤΑΣΗ – MULTI IO TRANSMITTER

DS-PM1-I16O2-WE ΑΣΥΡΜΑΤΗ ΕΠΕΚΤΑΣΗ – MULTI IO TRANSMITTER

16 ενσωματωμένες είσοδοι και 2 εξόδοι 12V.
Για τη σύνδεση ενσύρματων ανιχνευτών/περιφεριακών.

Hardware Features

• Serial Port: 1
• Battery Port: 1, 12 VDC input
• Tamper-Proof: Front and rear
• Power Switch: 1
• Alarm Input: 16
• Alarm Output: 2
• Power Output: 2 (12v, total1A)

Electrical characteristics

• Battery Type: Compatible with 12v 7 Ah 150 x 64 x 94 mm
• Power Supply: 100-240VAC，30w
• Operation Humidity: 10%~90%
• Operation Temperature: -10° ~ 40°C
• Power Consumption: Battery Supply: Quiescent current (50mA), Max current (1500mA), Voltage (13.8V) / 220V Supply: Quiescent current (45mA), Max current (300mA), Voltage (220V)
• Battery Life Span: Up to 36 hours

Wireless Transmission

• RF Frequency: 868MHz
• RF Method: Two-way communication
• RF Modulation: 2GFSK
• RF Distance: 1100m

Display

• Indicator 3: Power (Green), Fault (Amber), Signal Strength (Green/Red)

General

• Installation Method: Wall Mounting
• Dimension (WxHxD): 261x199x86.4mm / 975gr (without battery), 3024gr (with battery)
• Shell Material: Plastic
• Color: White
