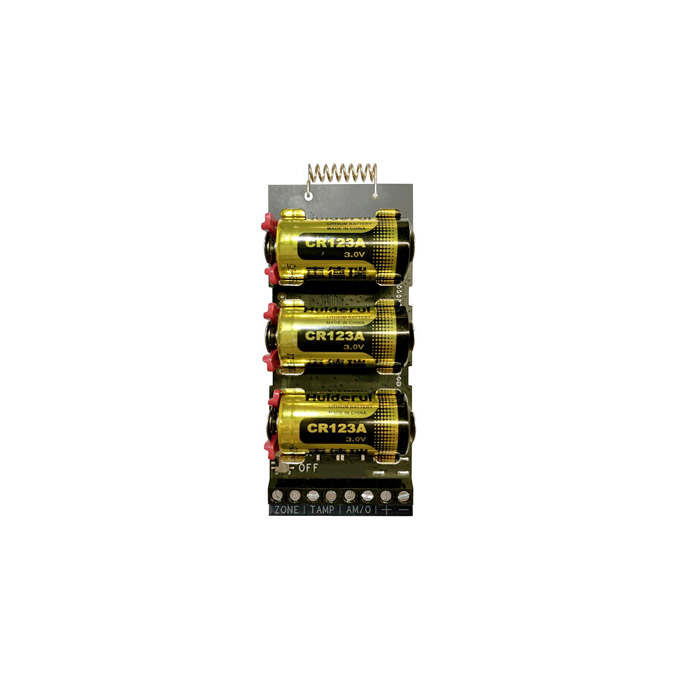

DS-PM1-I1-WE ΑΣΥΡΜΑΤΗ ΕΠΕΚΤΑΣΗ 1 ΖΩΝΗΣ

• Small size design, which can be put into wired detector easily
• 868MHz two-way wireless communication
• LED display, show the real status of device
• With one tamper input and one PGM, can be used as zone input or alarm outpout
• With 3.3v voltage output, can be used to power up external wired detector
• Detection of device removal by accelerometer

• Serial Port: 1
• Power Switch: 1
• Alarm Input: 1 Alarm, 1 Tamper
• Alarm Output: 1 PGM, AM/Output
• 3.3v Output: 1, up to 10mA

Wireless Transmission

• RF Frequency: 868MHz
• RF Method: Two-way communication
• RF Modulation: 2GFSK
• RF Distance: 1700m

Display

• Indicator 3: Alarm/Tamper（Red）, Fault（Amber）, Signal Strength（Green/Red）

Electrical Characteristics

• Power Supply: 3 CR123
• Operation Humidity: 10%~90%
• Operation Temperature: -10°C ~ 55°C
• Power Consumption: Quiescent current: 40.29 uA / Max current: 47.85mA / Voltage: 3 VDC
• Battery Life Span: More than 5 years (report alarm 50 times per day)

General

• Installation Method: Put inside Wireless Ready Detector
• Dimension (WxHxD): 102x41x20mm / 35g (Without Battery), 90g (With Battery)
