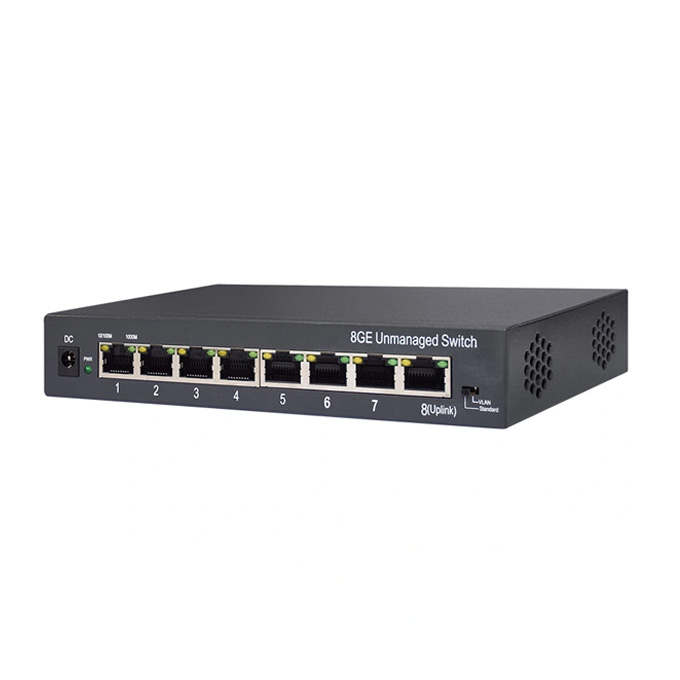

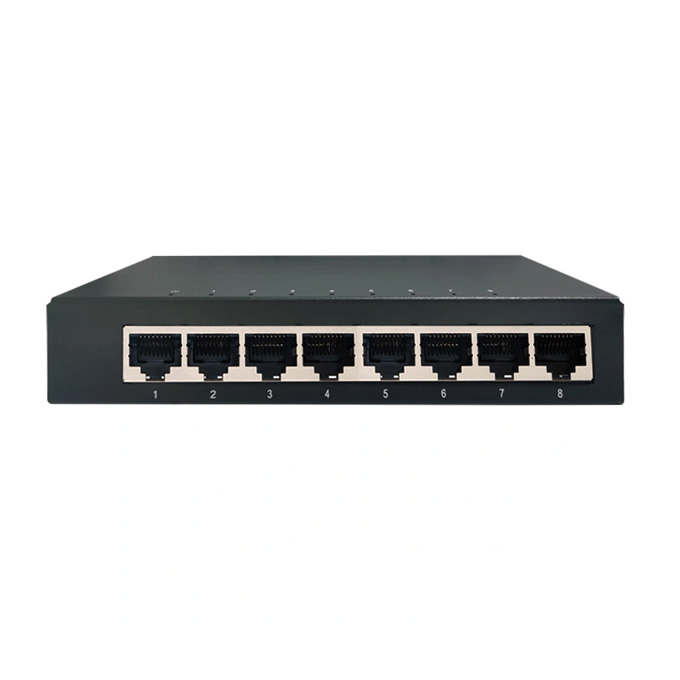

PM108GS V7 product have 8*10/100/1000Mbps RJ45 ports. Using store and forward technology, combined with dynamic memory allocation, to ensure the effective allocation of bandwidth to each port. This product is easy to use and maintain which can meet a lot of networking environment, such as Business building, Community, Hotel, Office etc.
Product Features
- Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3az Standard
- Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control
- Panel indicators monitor working status and help fault analysis
- Perfect security mechanism
- Intelligent identification of wire speed forwarding
- External power supply, exquisite iron shell structure design
- Operation Temperature: 0°C ~ 40 °C.
Product Specifications
| Model |
PM108GS V7 |
| Standard |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3ab, IEEE802.3az |
| Ports |
8*10/100/1000Mbps RJ45 Port |
| LED Indicator |
PWR, LNK/ACT |
| Network Media(Cable) |
10BASE-T: UTP category 3, 5 cable (≤100m)
100BASE-TX: UTP category 5, 5e cable (≤100m)
1000BASE-T: UTP category 5e, 6 cable(≤100m) |
| MAC Address Table |
4K, Auto-learning, Auto-aging |
| Jumbo Frames |
9216 Byte |
| Packet Buffer |
1.5Mbit |
| Forwarding Mode |
Storage-and-Forward |
| Forwarding Rate |
11.9Mpps |
| Switching Capacity |
16Gbps |
| Dimensions(L*W*H) |
140*76.7*27.65mm |
| Weight |
<1Kg |
| Fan |
Fanless |
| Input Voltage |
DC:12V/0.5A |
| Power Supply |
6W |
| Operation Temperature |
0°C ~ 40 °C |
| Storage Temperature |
-40 °C ~ 70 °C |
| Operation Humidity |
10%~90% RH non-condensing |
| Storage Humidity |
5%~90% RH non-condensing |
| Surge Protection |
Difference module±2KV Common mode±4KV |
| MTBF |
>50000 hours |
| Electrostatic Standard |
Contact ±6KV, Air ±8KV |
